800W MPPT Charge Controller 12V Dc to AC 110V 220V 1Kva Hybrid Solar Inverter

Name: 800W MPPT Charge Controller 12V Dc to AC 110V 220V 1Kva Hybrid Solar Inverter
Brand: SZSSTH
Price: 74 USD

Brand Name : SZSSTH

Model Number : SUF5000S4A1

Certification : CE Rhos BSI

Place of Origin : Guangdong, China

MOQ : 1pieces

Price : $74-80/pieces

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 100000pcs/month

Delivery Time : 7 Work Days

Packaging Details : Carton Box

model : UDI012AP

Output power : 1000VA 800W

frequency : 50HZ or 60HZ±1%

waveform : Pure sine wave

Battery voltage : 12VDC

Maximum solar charging current : 60A

Contact Now

Power Your World with UD Series Solar Inverters – Reliable, Efficient, and Smart Energy Solutions

Uninterrupted Power, Pure Sine Wave Performance

Experience seamless energy conversion with the UD Series Solar Inverters, delivering pure sine wave output for stable and clean power to your sensitive electronics. Whether for home, office, or industrial use, our inverters ensure compatibility with all devices, from appliances to high-end equipment.

Key Features

Wide Power Range: Choose from 800W to 10,000W models to match your energy needs.
High Efficiency: MPPT charge controller with up to 98% efficiency, maximizing solar energy harvest.
Dual Power Modes: Supports both AC input (220V standard) and battery backup (12V/24V/48V), with automatic switching for uninterrupted supply.
Smart Battery Compatibility: Works with lead-acid, gel, water, and lithium batteries, featuring advanced charging algorithms for optimized performance.

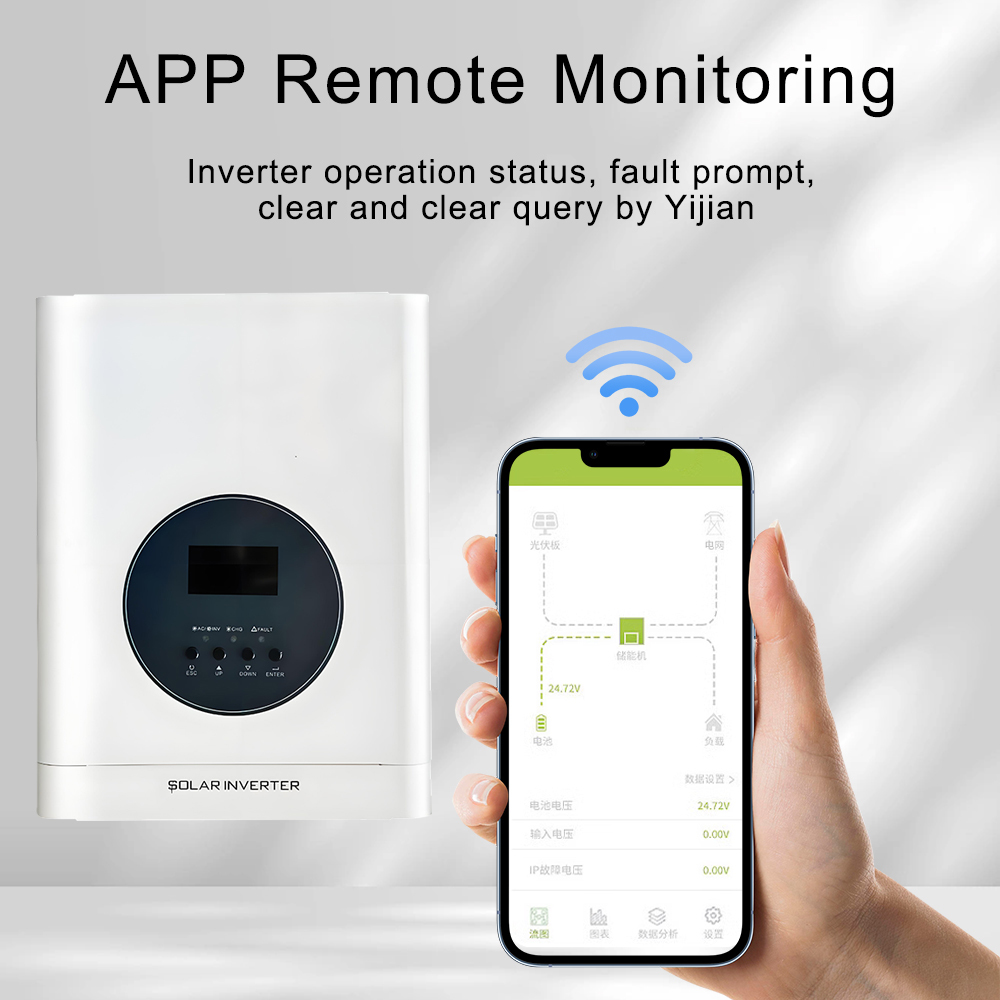

Remote Monitoring: Optional Wi-Fi/GPRS connectivity for real-time tracking and control.
Robust Protection: Built-in safeguards against overloads, short circuits, low voltage, and reverse battery connection.
User-Friendly Display: Monitor key parameters like PV voltage, battery status, and load current with ease.

Advanced Technology for Smarter Energy

DC Start & Self-Diagnosis: Automatic diagnostics ensure reliable operation.
Generator Integration: Optional auto-start function for backup generators.
Adjustable Charging Current: Customize charging rates based on battery type and application.
Flexible Solar Input: Wide PV voltage ranges (PWM/MPPT) for compatibility with diverse solar arrays.

Built to Last

Silent Operation: Noise levels below 45dB for peaceful environments.
Durable Design: Compact and sturdy, with models sized for easy installation (e.g., 465×310×135mm).
Wide Temperature Tolerance: Operates in 0°C–40°C and stores safely in -15°C–45°C.

Ideal Applications

Perfect for off-grid homes, RVs, telecom systems, and renewable energy projects, the UD Series combines cutting-edge technology with unmatched reliability.

Upgrade to Smarter Solar Power Today!
Choose the UD Series – where innovation meets endurance for a sustainable energy future.

model	UDI012AP	UDI512AP	UD1524AP	UD2024AP	UD3024AM	UO5048AM	UD6348AM	U012548AM	UD10048AM
Ac input voltage	220VAC(standard)				220VAC(standard)
Input voltage range	154-264VAC+3V(Nor Model)185-264VAC+3V(UPs model) 110V机型:77-132VAC+3V(Nor Model)92-132VAC±3V(UPs model)
Input frequency	50/60Hz±5%				50/60Hz±5%
Output power	1000VA 800W	1500VA 1200W	1500VA 1200W	2000VA 1600W	3000VA 2400W	5000VA 4000W	6300VA 5000W	10000VA 8000W	12500VA 10000W
AC model output Voltage	The output voltage under the mains is thesame as the input voltage
Battery model output voltage	220VAC+10%(Custom110VAC+10%)
Battery model output frequency	50HZ or 60HZ±1%
Battery model output wave	Pure sine wave
Battery type	External lead-acid battery,Gel battery,water battery or Lithium battery
Battery voltage	12VDC	12VDC	24VDC	24VDC	24VDC	48VDC	48VDC	48VDC	48VDC
Battery charging voltage	13.7VDC	13.7VDC	27.4VDC	27.4VDC	27.4VDC	54.8VDC	54.8VDC	54.8VDC	54.8VDC
Maximum PV array power	12V:800W		24V:1600W			48V:3200W	48V:6400W
Solar input voltage range	12V:PWM 15V-50VDC 24V:PWM 30V-105VDC				24V:MPPT 30V-150VDC 48V:MPPT 60V-150VDC
Maximum PV Display Open Circuit Voltage	12V: PWM 50VDC 24V: PWM 105VDC				24V:MPPT 150VDC 48V:MPPT 150VDC
Maximum solar charging current	60A						120A
Maximum AC Charge Current	27A	40A	20A	30A	60A	40A	50A	80A	100A
load peak ratio	(MAX)3:1
Protective function	Under themains:input overcurrent fuse Under inverter: overload protection,short circuit protection, low voltage protection (with battery anti-reverse connection, board).
Status Display	You can view parameters such as Ac voltage, Ac frequency, PVvoltage, Pv current, output voltage output frequency, battery voltage, load current and other parameters by turning the page keys.
Voice prompt	Low batteryprotection ouzzerlona peep Low batterybuzzer beeps every second Machine fault buzzer beeps Overload buzzer beeps When the overload is less than 130%, the buzzer will sound every second,and the output will be turned off after 30s. When the overload is greater than150%.the output will be turned off after 300ms.
Operating temperature	0°C~40℃
Storage temperature	-15°C~45°C
Relative temperature	-10°C~90℃C no condensation
Noise	<45dB
size(LWH)mm	465310135MM						545400200MM
